Automating Payload Servers with AWS CodePipeline
imported from https://2xxe.com/posts/1/
tl;dr
Commit a genesis script payload to AWS CodeCommit → AWS CodePipeline starts → AWS CodeBuild compiles payload to executable → Payload uploaded to AWS S3 → AWS Lambda uses SSM to have EC2 download executable from S3 and put it in web directory
Intro
While I spend most of my time performing offensive security assessments (pentesting, red teams, web apps, etc), I have a side interest in DevOps, especially infrastructure and automation. Recently, I had some free time so I decided to check out Amazon’s continuous integration/deployment (CI/CD) tooling and apply it to offensive operations in the form of a payload server build pipeline. A payload server build pipeline is a particularly interesting idea to me for a number of reasons. Primarily, it allows team members to both codify their techniques into a single source of truth, as opposed to disparate sources like operator VMs, and to streamline the process of going from payload source creation to payload delivery to a target. In this post, I will specifically be covering using AWS CodePipeline to automate the deployment of genesis script (gscript) payloads to a payload server.
Pipeline Components
AWS CodeCommit: Source control repository
AWS CodePipeline: Main pipeline for automation
AWS CodeBuild: Builds payloads from source control
AWS Lambda: Functions as a service
AWS S3: Object storage
AWS EC2: VPS
AWS SSM: System management
Pipeline Flow
Commit .gs (gscript) file(s) to payload repository
CodePipeline starts
CodeBuild compiles .gs file(s) to executables
Executables stored in S3
Lambda uses SSM’s run command to have EC2 instance download files
Files moved to web directory
Setup - Prerequisites
Since the above flow uses SSM, the EC2 instance must have the SSM Agent installed. If the instance was launched using a standard Amazon Linux, Windows Server, or Ubuntu 16.04/18.04 AMI, this is already installed. However, the instance must also have an instance role that allows the SSM Agent to register. As this instance also needs access to download from S3, we can use the AmazonEC2RoleforSSM managed policy to create an instance role then attach it to the instance.
The only other component needed is a CodeCommit repository with a build configuration YAML file (buildspec.yml).
The directory structure can be whatever you choose as long as the buildspec.yml is in the root. For this project, I am using the gs directory to store the gscript payloads and the bin directory to stored the compiled executables.
Creating the Pipeline
Once the above prerequisites are met, we can create the pipeline. In the CodePipeline console, create a new pipeline that uses CodeCommit as a source and that points towards the payload CodeCommit repository. Keep in mind that the pipeline will trigger on each commit to the selected branch. To avoid triggering a build on every small change, consider using a staging branch for minor changes then merging them to the master cumulatively.
When setting the build configuration, we can leverage the existing gscript Docker image to perform the compilation.

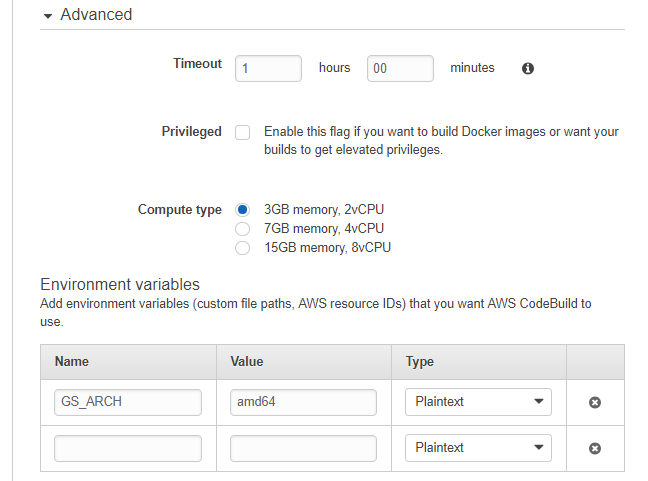

In the advanced settings, I added an environment variable called GS_ARCH, which will be used to tell gscript which architecture to build for; in this case amd64.
Once the pipeline is created, it should resemble the following:
Building the Spec
Now that the pipeline is in place, we need to complete the buildspec.yml so that the gscript payloads are compiled properly. Below is an example buildspec.yml that I used for this project:
version: 0.2
phases:
build:
commands:
- wd=$(pwd); for gs in gs/*; do e=$(echo $gs | cut -d '/' -f2); f=$(echo $e | sed 's/.gs/.exe/g'); /root/go/bin/gscript compile --os windows --arch $GS_ARCH -o $wd/bin/$f $wd/gs/$e; done;
artifacts:
files:
- bin/*Line 1: version for CodeBuild (this cannot be an arbitrary value - see buildspec reference guide linked above)
Line 3-6: These are the phases for the build and their accompanying commands. In this case, there is only one phase (build). The command to be run will use gscript to compile each payload individually. The environment variable from the pipeline creation steps is used here as well. Alternatively, you can take a more involved approach and have gscript compile payloads using multiple input files.
Lines 7-9: This indicates which items from the build process should be uploaded to S3. In this case, only the bin directory (compiled files) will be uploaded.
Now, when a new gscript file is committed to the repository, the build will run, take each gscript file in the gs directory, compile them, and save them to the bin directory, which gets shipped to S3.
Serving the Files
The final stage of the pipeline is to ensure the compiled files make it to the payload server. To do this, we can make a Lambda function that triggers when the CodeBuild process completes and pass the build artifact location to that Lambda. This Lambda will need to have permissions to send SSM commands to instances as well as put pipeline statuses to CodePipeline. Without pipeline permissions, the stage will appear to hang on being in-progress until it times out. Here is the policy I used for this project:
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "VisualEditor0",
"Effect": "Allow",
"Action": [
"ssm:SendCommand",
"codepipeline:PutJobFailureResult",
"codepipeline:PutJobSuccessResult",
"ssm:ListDocuments",
"codepipeline:GetPipelineState"
],
"Resource": "*"
}
]
}and the associated Lambda code, written in Python 2.7:
import json,os,boto3
def lambda_handler(event, context):
iid = os.getenv('INSTANCE_ID',None)
pd = os.getenv('PAYLOAD_DIR',None)
pipeline = boto3.client('codepipeline')
job = event['CodePipeline.job']['id']
if iid is None or pd is None:
pipeline.put_job_failure_result(
jobId=job,
failureDetails={
'type':'ConfigurationError',
'message':'missing environment variables in lambda'
}
)
artifact = event['CodePipeline.job']['data']['inputArtifacts'][0]['location']['s3Location']
s3loc = 's3://'+artifact['bucketName']+'/'+artifact['objectKey']
#print s3loc
zf = artifact['objectKey'].split('/')[-1]
cmd1 = 'aws s3 cp %s %s.zip' % (s3loc,zf)
cmd2 = 'unzip %s.zip -d %s' % (zf,zf)
cmd3 = 'sudo mv %s/bin/* %s' % (zf,pd)
client = boto3.client('ssm')
response = client.send_command(
InstanceIds=[
iid
],
DocumentName='AWS-RunShellScript',
Parameters={
'commands':[cmd1,
cmd2,
cmd3
],
'workingDirectory':[
'/tmp'
]
}
)
cmdid = response['Command']['CommandId']
pipeline.put_job_success_result(
jobId=job,
currentRevision={
'revision':'1',
'changeIdentifier':'1'
}
)This function uses two environment variables:
INSTANCE_ID: the EC2 instance to run the command on
PAYLOAD_DIR: the payload directory where the executables should be placed
The target EC2 instance should have unzip and awscli installed
While the awscli is used to copy the files from S3, you can alternatively generate a pre-signed S3 URL for the artifact then have the EC2 instance download that without the awscli. Keep in mind that you will have to adjust the Lambda permissions to allow it to generate signed URLs.
The EC2 instance’s web server should be configured to serve the payload directory.

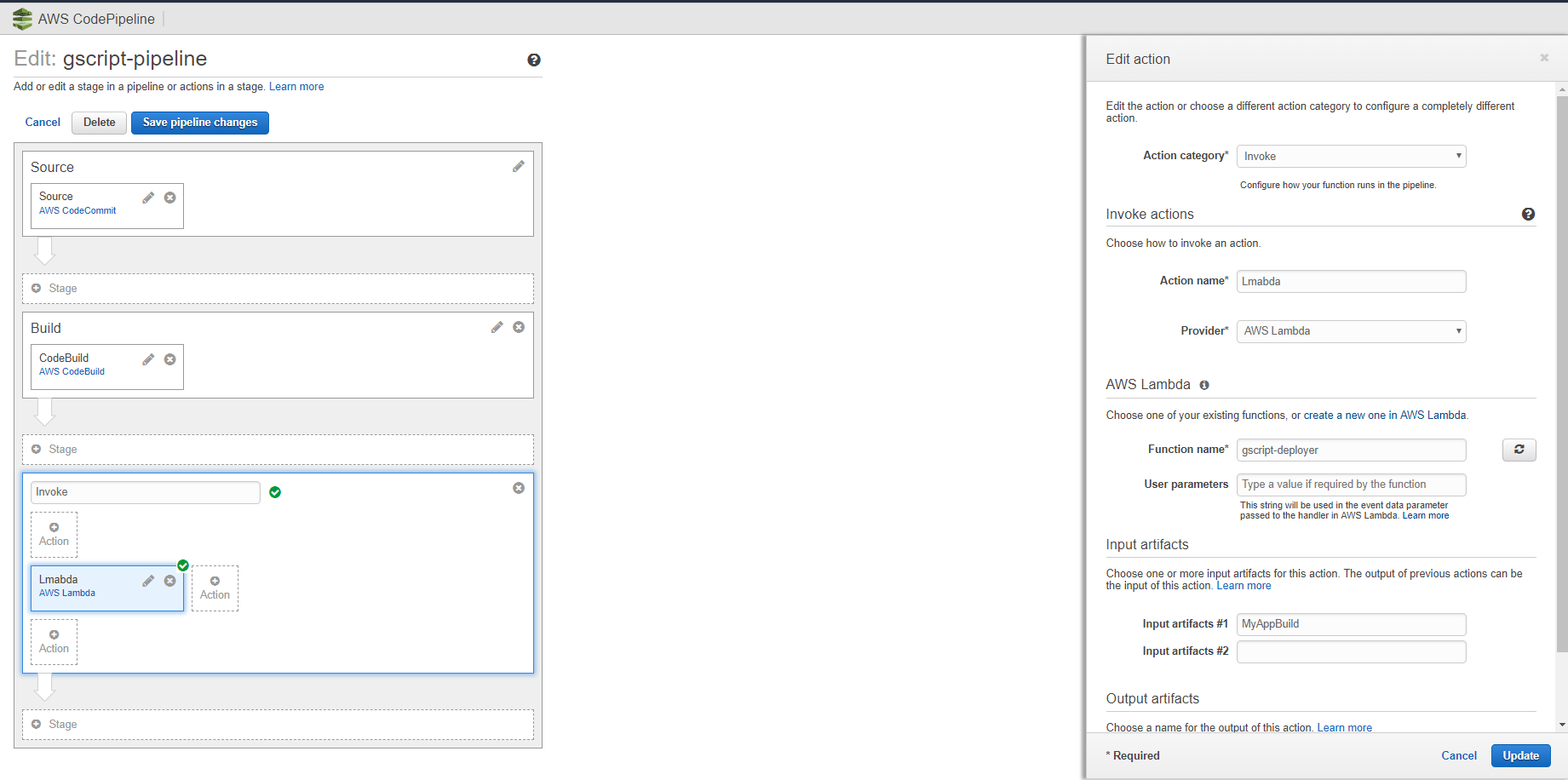

Once the Lambda is created, we can add the final stage to the pipeline.
Putting It All Together
To test the pipeline, commit a valid gscript payload to the gs directory of the CodeCommit repository. You can find example scripts here. The pipeline should trigger on the commit, build the executables, store them in S3, then serve them on the EC2 instance. If all goes well, the pipeline status should be green.
Additionally, you should see a successful SSM command in the SSM console
and the files in the payload directory
Closing Thoughts
Hopefully this has provided you with an idea of how AWS CI/CD tooling can be used for offensive operations. While some of the methods in this post may not be particularly scalable, they can be used as a baseline when starting to create a payload server pipeline of your own.
